| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CAT/KOMATSU/HITACHI/HYUNDAI/KEBELCO |
| Certification: | ISO |
| Model Number: | PC40/PC55UU-2/PC60/PC100/PC150/PC200/PC210/PC220/PC270/PC300/PC350/PC360/PC400/PC450PC600 |
| Minimum Order Quantity: | 1 |
| Price: | USD1.2 |
| Packaging Details: | Export standard packing with wooden pallet |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | Unlimited |
| Application: | Crawler Excavator, Bulldozer; Excavator Undercarriage Parts | Type: | Excavator Undercarriage Parts;Excavator&Bulldozer Parts; Track Link Assy; Track Chain Group |
|---|---|---|---|
| Materials: | 30MnB Steel Or 45# Carbon Steel Or 85# Carbon Steel | Warranty: | 1 Years/1200 Hours |
| Surface Hardness: | 30MnB Is HRC42-49, 45# Is HRC42-58, 80# Is 280-320 HB | Technique: | Forging&Casting |
| Color: | Yellow | Packing: | Wooden Pallet |
| Quality: | OEM Quality; High Quality |
How to chose the crawler track undercarriage& whole rubber track chassis:
To make sure the offered crawler undercarriage is suitable for your application, please offer the following details:
1. Rubber or steel track undercarriage
2. What is the payload of undercarriage
Note: It Is The Weight Of Machine Excluding The Weight Of Undercarriage
3. Length Of Track Undercarriage (Mm)
4. Width Of Each Side Of Track Undercarriage (Mm)
5. Height Of Track Undercarriage (Mm)
6. Total Width Of Track Undercarriage (Mm)
7. Working Flow Rate Per Each Side Of Undercarriage (l/Min)
8. Working Pressure (Mpa)
9. Travelling Speed (Km/Hr)
10. Climbing Capacity

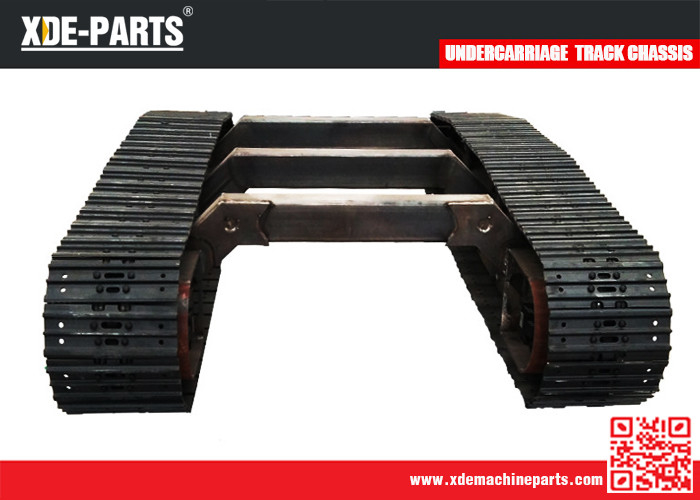

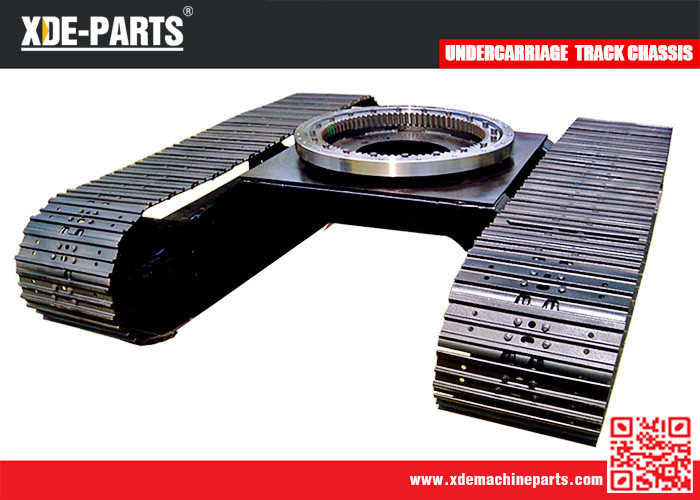

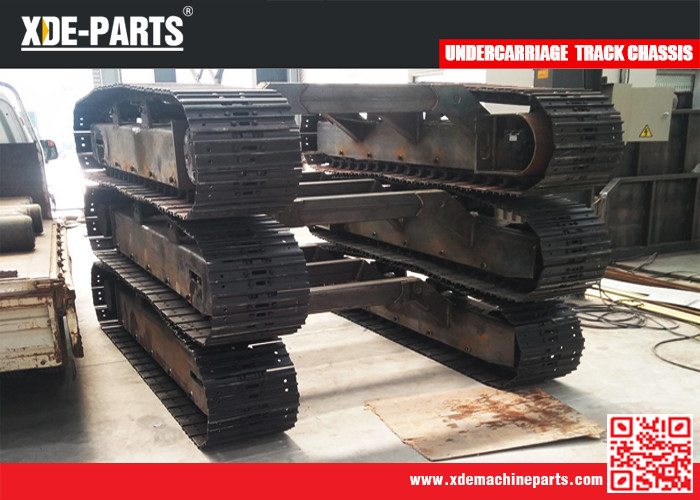

XDE crawler track undercarriage factory, is specialized in the research and development of rubber and steel tracked undercarriage.
XDE keeps the whole world in view and blaze steadily new trails. By now, we have developed various tracked undercarriage systems
and the load capacity is from 0.5 ton to 120 ton. It has been widely applied in drilling machines (core drill, horizontal directional
drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines.
Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.

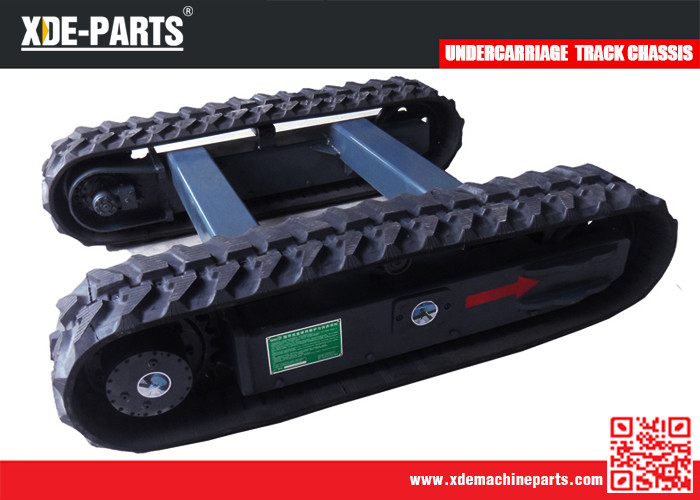

XDE Crawler Track Undercarriage Chassis Features:

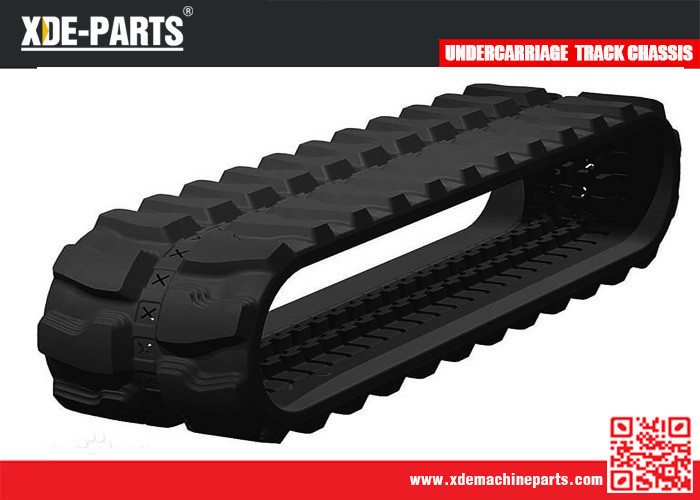

1.Adopt high strength engineering rubber track.
2. The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor,
such as Nabtesco (Japen), Brevini (Italia). If you need, we can also provide track motor made by our own factory.
3.The beam is made of Q345B with high loading capacity.
4. It can also be designed and manufactured on customers' request.
5. It is widely applied in all kinds of mini- drilling rig, mini-excavator, lawn mower,
Aerial Working Platform and construction engineering machines.
THE PARAMETERS OF TRACK UNDERCARRIAGES:
| MODEL | Dinamic capacity |
Static capacity |
Weight kg. |
Press.Bar | oil flow L/min |
Torque Nm to engine |
Grad. | Speed km/h |
| XDE-1500 | 1200 | 1500 | 330 | 270 | 17 | 2000 | 65% | 1.7 |
| XDE-2500 | 2500 | 3000 | 380 | 220 | 35 | 4723 | 65% | 2/3.2 |
| XDE-3500 | 3500 | 4000 | 650 | 220 | 35 | 4723 | 65% | 2/3.5 |
| XDE-5000 | 5000 | 6000 | 900 | 220 | 55 | 8330 | 65% | 2/3.7 |
| XDE-6000 | 6000 | 7000 | 1280 | 220 | 55 | 8330 | 65% | 2/3.7 |
| XDE-8000 | 8000 | 9500 | 1550 | 300 | 82 | 11700 | 65% | 2.8/4.7 |
| MODEL | A Length |
B Center Distance |
C Height |
D Total Width |
E Width of track shoe |
F Height of Cross beam |
No. of roller |
| XDE-1500 | 1420 | 1066 | 350 | 980 | 230 | 165 | 3+3 |
| XDE-2500 | 1850 | 1370 | 480 | 1220 | 250 | 245 | 4+4 |
| XDE-3500 | 1980 | 1511 | 500 | 1520 | 300 | 250 | 5+5 |
| XDE-5000 | 2500 | 1950 | 550 | 1800 | 350 | 265 | 6+6 |
| XDE-6000 | 2905 | 2355 | 550 | 1800 | 400 | 265 | 7+7 |
| XDE-8000 | 2950 | 2450 | 600 | 1800 | 400 | 310 |
7+7
|
