| Application: |
Crawler Excavator, Bulldozer; Excavator Undercarriage Parts |
Type: |
Excavator Undercarriage Parts;Excavator&Bulldozer Parts; Track Link Assy; Track Chain Group |
| Materials: |
50Mn;25MnB;40Mn2; 40SiMnTi |
Warranty: |
1 Years/1200 Hours |
| Surface Hardness: |
HRC45-58, HRC52-056 |
Technique: |
Forging&Casting |
| Color: |
Yellow |
Packing: |
Wooden Pallet |
| Quality: |
OEM Quality; High Quality |

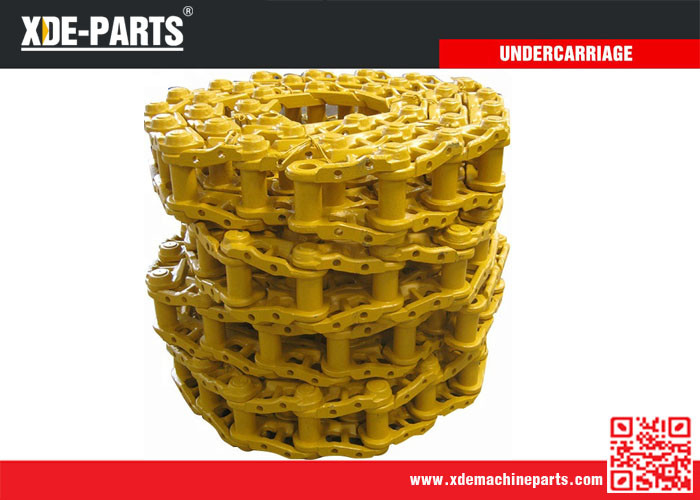

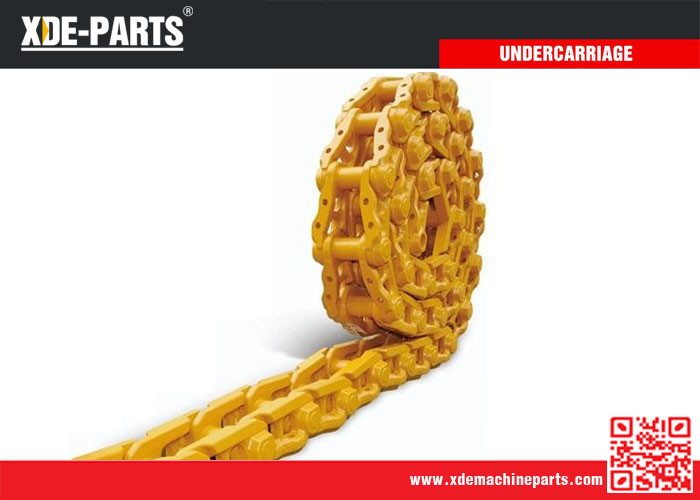

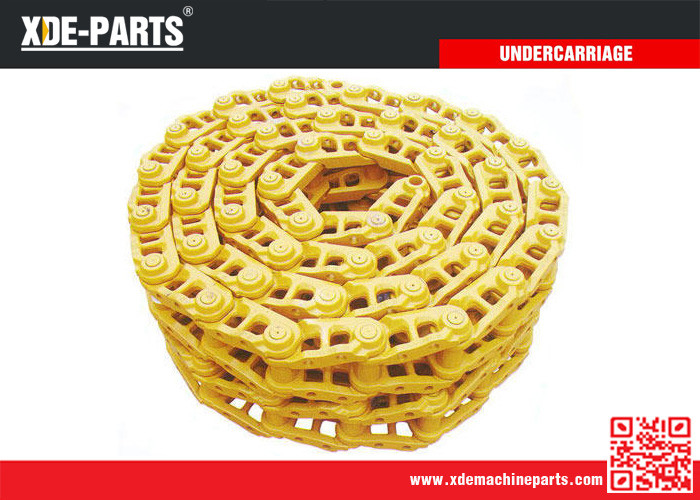

We can supply both standard track link assembly and sealed and lubricated track chain for excavators and bulldozers,
track link pitch from 101mm to 260mm suited for excavating equipment and special machinery of most sizes.
- Track links are forged,quenched and tempered.
- Rail deep hardened,with average surface hardness HRC 53.
- Track bushings treated in a special furnace for high temperature carburizing.
- Deep hardened pins for best resistance to wear and fatigue.
- Track shoes heat treated for proper thoroughness and wear resistance.
- Solid design of chain link enables wear resistance and stress resistance for ling time
- The highly finished and deeply quenched chain link,pin sleeve and bush are stronger in wear resistance.
| Lubricated track chains for komatsu bulldozers |
D20,D30-11,D40,D50,D60,D65,D80,D85,D85A-12,
D85A-18,D150,D155A-1,D155A-2,D155A-3
|
| Lubricated chains for caterpillar bulldozers |
D4D,D4H,D5B,D6C,D6D,D6E,D6H,D7H,D7G,D8K |
| Lubricated chains for other bulldozers |
SD16,SD22,SD23,SD32,TY130,TY160,TY220,TY330,TY320B |
|
Machine Model
|
SHANTUI PART NO
|
Pitch (mm)
|
No. of
Section
|
Hole Size
(mm)
|
Description
|
Weight(KG)
|
|
D10N,SD42
|
8260RA-41000
|
260
|
41
|
29.5
|
Track Link ass'y (41L)
|
1873
|
|
260-RA-41000-01
|
260
|
41
|
29.5
|
Track Link ass'y (41L)Lubricating
|
1895.5
|
|
D155-1,2,SD32
|
228-RA-41000-01
|
228
|
41
|
24.5
|
Track Link ass'y (41L)Lubricating
|
1078.1
|
|
8228MC-41000
|
228
|
41
|
24.5
|
Track Link ass'y (41L)
|
1125
|
|
D85-18,SD22
|
8216MM-45000
|
216
|
45
|
20.2
|
Track Link ass'y (45L)
|
853
|
|
8216MG-41000
|
216
|
41
|
19.2
|
Track Link ass'y (41L)
|
764
|
|
216-RE-38000-01
|
216
|
38
|
19.2
|
Track Link ass'y (41L)Lubricating
|
696.85
|
|
8216MG-38000
|
216
|
38
|
19.2
|
Track Link ass'y (38L)
|
741
|
|
D85-21,SD23
|
8216MM-45000
|
216
|
45
|
20.2
|
Track Link ass'y (45L)
|
853
|
|
8216MG-41000
|
216
|
41
|
19.2
|
Track Link ass'y (41L)
|
764
|
|
8216MG-39000
|
216
|
39
|
19.2
|
Track Link ass'y (39L)
|
726
|
|
D65A-8,SD16
|
8203MM-42000
|
203
|
42
|
20.2
|
Track Link ass'y (42L)
|
647
|
|
8203MJ-42000
|
203
|
42
|
20.2
|
Track Link ass'y (42L)
|
636
|
|
8203MJ-39000
|
203
|
39
|
20.2
|
Track Link ass'y (39L)
|
590
|
|
8203MJ-37000
|
203
|
37
|
20.2
|
Track Link ass'y (37L)
|
560
|
|
203-RG-39000-01
|
203
|
39
|
20.2
|
Track Link ass'y (39L)Lubricating
|
570.81
|
|
203-RF-37000-01
|
203
|
37
|
20.2
|
Track Link ass'y (37L)Lubricating
|
543.1
|
|
D53,SD13
|
8190ML-38000
|
190
|
38
|
20.2
|
Track Link ass'y (38L)
|
446
|
|
D31A-18,SD08
|
8154ME-41000
|
154
|
41
|
16.2
|
Track Link ass'y (41L)
|
267
|
|
8154MB-41000
|
154
|
41
|
14.2
|
Track Link ass'y(41L)
|
267
|
|
CAT D6D
|
8203MG-39000
|
203
|
39
|
19.5
|
Track Link ass'y (39L)
|
576
|
|
KOMATSU PC60-7
|
154MC-42000
|
154
|
42
|
14.2
|
Track Link ass'y (42L)
|
178
|
|
KOMATSU PC120
|
8175MG-42000
|
175
|
42
|
16.2
|
Track Link ass'y (42L)
|
282
|
|
KOMATSU PC130
|
8175MG-42000
|
175
|
42
|
16.2
|
Track Link ass'y (42L)
|
282
|
|
KOMATSU PC200-7
|
8190MH-45000
|
190
|
45
|
20.2
|
Track Link ass'y (45L)
|
528
|
|
KOMATSU PC220-7
|
8190MH-45000
|
190
|
45
|
20.2
|
Track Link ass'y (45L)
|
528
|
|
KOMATSU PC300-7
|
216MF-45000
|
216
|
45
|
22.3
|
Track Link ass'y (45L)
|
735
|
|
HITACHI ZX200
|
8190ML-46000
|
190
|
46
|
20.2
|
Track Link ass'y (46L)
|
540
|
